- Separate dual mono + control power supply
- Dual mono, fully balanced preamp circuitry
- Circuit boards suspended to guard against vibration
- Line Stage Gain Module circuit for ideal positive/negative signal balance
- Dense, machined aluminum chassis panels joined with steel buttresses
Simplicity and sound quality.

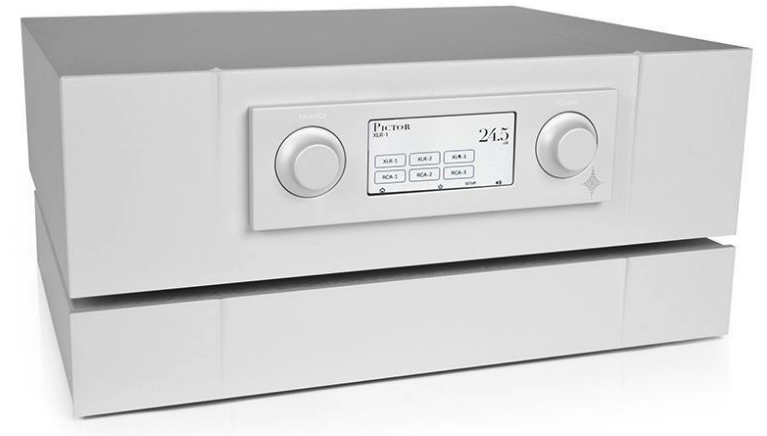

Pictor is an elemental version of our acclaimed Performance Series Virgo III line stage. It uses the same core circuit topology as Virgo III, and a few minor changes aside, the same separate power supply. The main difference is that Pictor has fewer inputs. For simpler systems, Pictor is the perfect choice: simplicity and sound quality distilled into a single product.
As with all of our preamps, Pictor uses our Line Stage Gain Module, a unique design that uses a servo circuit to monitor and maintain the balance between the positive and negative halves of the audio signal. When Pictor is used with a Constellation power amplifier, the Constellation Link may be employed, maximizing sound quality by bypassing the power amplifier’s gain stage.
Pictor mirrors Virgo III’s convenience and refreshingly simple design. A front touchscreen with elegant, easy-to-read fonts accesses all adjustments. Frequently used controls are also available on a machined aluminum remote. A home theater bypass mode is provided for seamless integration with surround-sound systems.
43.2 x 13.3 x 38.1 cm (whd)
43.2 x 7 x 36.8 cm (whd)
Line Stage Gain Module for perfect signal balance
The core of Pictor is the Line Stage Gain Module circuit originally developed for our Reference Series Altair line stage. We have found no better method of amplifying and buffering line-level signals. It is a fully balanced topology, with separate mirror-imaged circuits to amplify the positive and negative halves of the audio signal. To assure clear reproduction of even the subtlest details, we use a servo circuit that continuously monitors and maintains the positive/negative signal balance. Use of ultra-low-noise field-effect transistors (FETs) assures that Pictor?s outputs emit pure music and nothing else.
Because Pictor?s outputs achieve essentially perfect balance, they can be connected to Direct inputs of our power amplifiers. This forms the Constellation Link, which further improves fidelity by bypassing the amplifier?s own Line Stage Gain Module.
Physically isolated audio circuits
Pictor?s audio circuit boards mount on a thick metal plate, which is ?floated? using soft, pliable isolators. This isolation prevents ground-borne vibration from reaching the audio circuits. Vibration control in line-level audio components is especially important because the vibrations can create small fluctuations in the values of passive components. These fluctuations can produce an audio signal of their own, which pollutes the music signal and obscures detail. Thanks to our careful layout and construction, these issues are never a concern with Pictor.
Key chassis components are machined from think aluminum slabs. The sheer mass of the metal makes it harder for vibrations to affect Pictor, and the unusually thick panels are capable of blocking any electromagnetic or radio-frequency interference commonly encountered in a home.
Elegant, friendly design
All of Pictor?s features and adjustments can be controlled through a large, easy-to-read LCD touchscreen on the front panel. Even Pictor?s most advanced features, such as input gain preset and home theater bypass, can be accessed with just a few touches. We chose the touchscreen fonts not only because they look great, but also because they are easy to read from across a room.
Pictor?s most commonly used controls, such as volume, input selection and mute, can also be accessed through its machined aluminum remote, which echoes the style and elegance of the preamp itself.
We have noticed that many audiophiles are gravitating toward simpler systems, perhaps with just a turntable and a digital media server as sources. For them, Pictor may be the ideal preamp. Its sound quality is exceeded only by that of our Altair II and Virgo III preamps. Its versatility allows it to achieve maximum fidelity from any source. And its simplicity and ease of use make it a pleasure to use and hear every day.
